Structural consistency is critical for material handling equipment performance.

Conveyor frames that don't twist.

Welds should align correctly on the first attempt.

Rack columns must maintain their integrity after thousands of load cycles.

For OEMs and fabricators manufacturing conveyors, racks, lift tables, carts, and automation frames, tubing specifications matter. It can mean the difference between a weld that fits perfectly the first time and one that needs extra grinding. This blog explains what to look for in steel tubing for material handling equipment and why dimensional consistency matters.

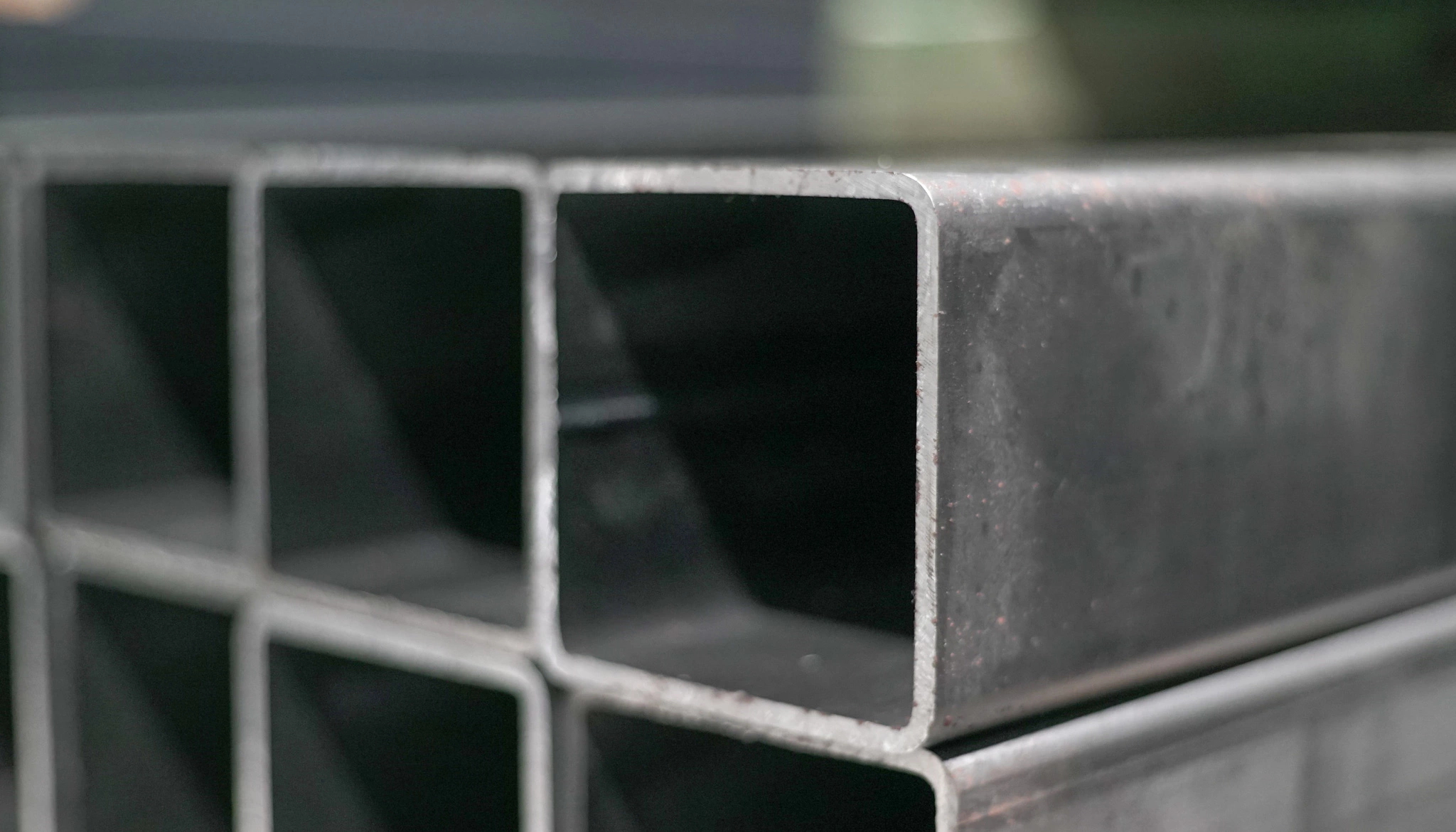

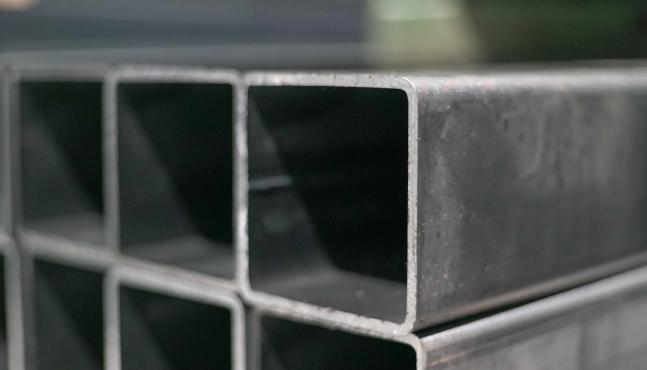

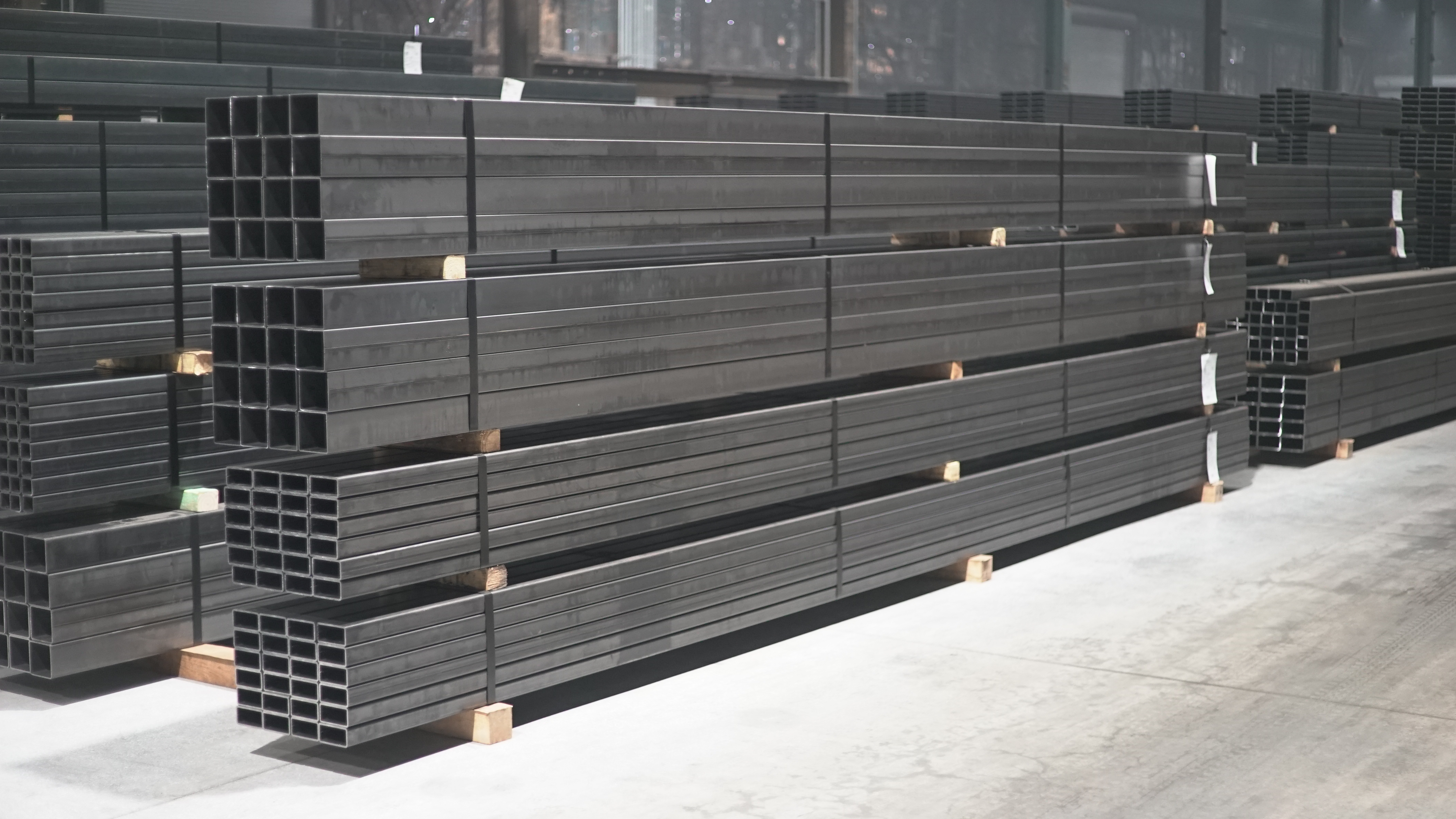

Alliance Tubular Products (ATP) manufactures Electric Resistance Welded (ERW) and Hollow Structural Section (HSS) tubing in square and rectangular profiles from 1.5" to 5.0" square (38mm–127mm) and 1.5" x 2.0" up to 4.0" x 6.0" (102mm x 152mm), with lengths up to 50 feet.

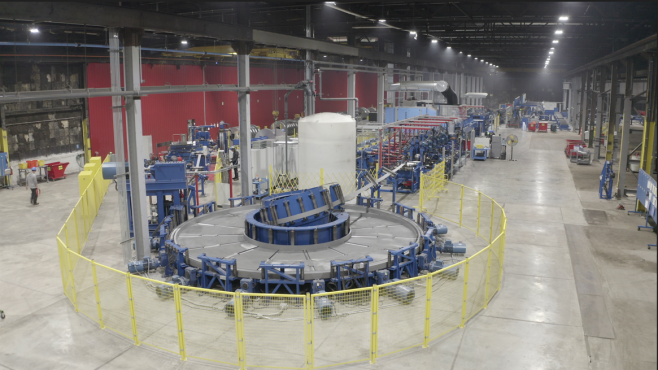

The fully automated direct-form mill is designed for speed and consistent dimensional accuracy, both essential for this equipment class.

Conveyor frames require precise straightness. Any bow or twist over a long span can cause roller misalignment or belt drift. Square tubing is ideal for cross-supports where load resistance must be equal in all directions. Rectangular tubing, oriented with the long side vertical, suits main frame rails better because it resists vertical bending more efficiently for the same material weight.

Consistent wall thickness is as important as the outer dimension. Long frame runs require uniform weld penetration, which depends on stable wall thickness along the entire length. Tubing specifications for conveyor frames are critical across the entire assembly, not just at individual joints

Rack columns and beams experience repeated, often uneven loading, so yield strength and a consistent cross-section are essential for long-term performance. Because rack modules repeat throughout a warehouse, precut lengths matter as much as the steel specification.

Lift tables use structural framing around moving hydraulic or scissor mechanisms, so squareness and dimensional tolerance are more than fabrication conveniences; they determine whether moving parts clear the fixed frame.

Even a slightly out-of-square frame can cause the mechanism to bind during travel. Wall thickness options also let designers fine-tune load capacity without changing the frame’s outer footprint, which is critical when space around the mechanism is limited.

Carts and dollies typically run on lighter-gauge square tubing, but the priority shifts from single-unit strength to repeatability across production. A fleet of a hundred identical carts needs every frame to weld up the same way, every time; inconsistent tubing means inconsistent welds, and inconsistent welds mean a fleet that doesn't look or perform like a fleet.

AS/RS systems, AGV frames, and robotic support structures have the tightest tolerance requirements. These frames commonly carry sensors and guidance systems that need a stable, non-warped mounting surface; a frame member that's out of square by even a small margin can throw off sensor alignment in ways that are much harder to diagnose than a mechanical fit issue.

As automation scales across a facility, precision fit-up on the steel tubing for industrial equipment behind it becomes a bigger factor in uptime than it might seem on paper.

When you partner with Alliance, you're getting more than just steel tubing. You're getting a full-spectrum steel solution, all managed under one roof:

1. Alliance Steel sources and processes flat-rolled coil using state-of-the-art slitting and blanking equipment, delivering high-quality raw materials that meet precise specifications for modular-grade performance.

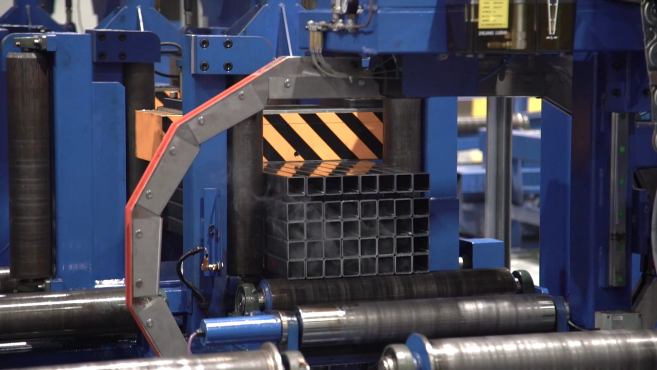

2. Alliance Tubular Products transforms slit coil into structural steel tubing using a direct-form ERW process that produces square and rectangular tubing with tight tolerances, superior straightness, and excellent load-bearing capacity.
3. Alliance Fabrication and Manufacturing completes the offering with value-added fabrication services, including robotic welding, laser cutting, precision bending, kitting, and assembly—ideal for transforming raw materials into finished, modular frame components.

Together, we offer:

1. A single point of contact for coil, tube, and fabrication
2. Reduced freight costs
3. Faster response times and production turnaround
4. Consistent quality from start to finish

You need a partner who understands the pace and pressure of your project. At Alliance, we're that partner.
